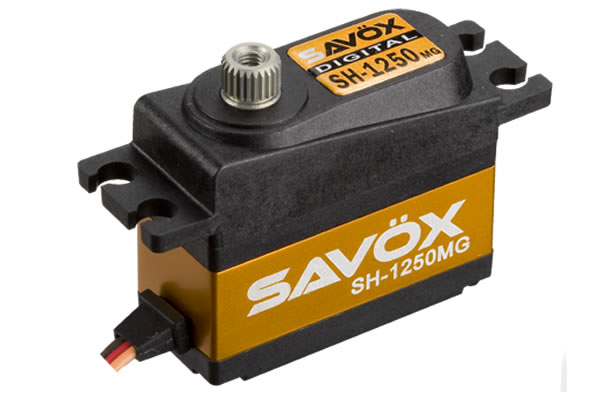

This is the Savox SH-1250MG Super Torque Metal Gear Mini Digital Servo-savsh1250mg.
Features:
- The coreless motor and light weight design provides smoother, faster, and more efficient operation.
- The metal case design not only looks awesome but also allows for cooler and smoother operating temperatures.
- Metal gears form a solid framework for precise control and operation.
- Supports digital and analog control signals
- Ideal for rudder on 450 level helis, CCPM on 500 level helis, and steering servo on 1/12th scale cars.
Weight(g): 29.6
Speed(@4.8V sec/60): .16
Torque(@4.8V oz-in): 30.6
Speed(@6.0V sec/60): .11
Torque(@6.0V oz-in): 63.9
Gear: Metal
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Technical Specification :
Dimensions(mm): 35.0X15.0X29.2
Weight(g): 29.6
Speed(@4.8V sec/60): .16
Torque(@4.8V oz-in): 30.6
Speed(@6.0V sec/60): .11
Torque(@6.0V oz-in): 63.9
Gear: Metal
Bearing: 2BB
Case: Aluminum
Running current (at no load): 80 mA @ 4.8V
Running current (at no load): 100 mA @ 6.0V
Stall current (at locked): 800 mA @ 4.8V
Stall current (at locked): 1000 mA @ 6.0V
Idle current (at stopped): 6 mA @ 4.8V
Idle current (at stopped): 6 mA @ 6.0V
Limit angle: 210°±10°
Connector wire gauge: #26 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 110° (when1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 5 μsec
Rotating direction: Counterclockwise (when1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 154°(when800→2200 μsec)
